Slab Decking
H20 Timber Formwork Beams
- H 20 Slab and Beam formwork system that is adaptable every project
- High Quality Beam Chord.
- Less damage.
- Easy to handle.
- Length from 1.45m up to 5.90m
- Moment (M): 5 kNm
- Shear force (Q): 11kN
Wooden Beam
- Wooden beam is adaptable for every project.
- Low Cost and available in the Local Market.
There is different size for the beams ex. 2’’x4’’ , 3’’x6’’ , 3’’x8’’
Aluminum Beams
- High - Strength Aluminum.
- Lengths to suit the needs of construction sites.
- High - Load carrying capacity for a low self-weight.
- Robust and unaffected by weather and humidity.
ALUM S150
- First Moment Of inertia Z = 47.15 cm3
- Section Inertia I = 356 cm4
- Stress F = 1145.50 kg/cm2
- E Modulus of Elasticity E = 689 t/cm2
ALUM S150
- First Moment Of inertia Z = 75.36 cm3
- Section Inertia I = 574.3 cm4
- Stress F = 1145.50 kg/cm2
- E Modulus of Elasticity E = 689 t/cm2
Slab Shoring
Introduction:
CupLock is a flexible and adaptable scaffolding system that can be used to make a wide variety
of structures and support to vertical loads.
It has a unique circular node point that allows up to 4 components to be connected to one fastening action which serve useful for construction, refurbishment or maintenance.
Cuplock is ideal for a wide range of applications including the scaffolds like Circular oil tanks, boilers, ship building, industrial maintenance, staircase access and more.
- Easy to Assemble
A simple locking cup at each node point on the standards enables connection of the ends of up to four members in one locking action. With all four members attaching at the same level the
system is ideal for load bearing construction applications as well as conventional face scaffolding.
- Robust Design with High Safety
The Cuplock System has a proven performance history on an extensive number of sites, meeting the requirements of the various statutory bodies.
Cuplock standards ( Vertical Elements ) are available in different Dimensions (from 0.5m to 3.0m) and variable ledgers ( Horizontal Elements ) (From 0.60m to 2.50m)
Introduction:

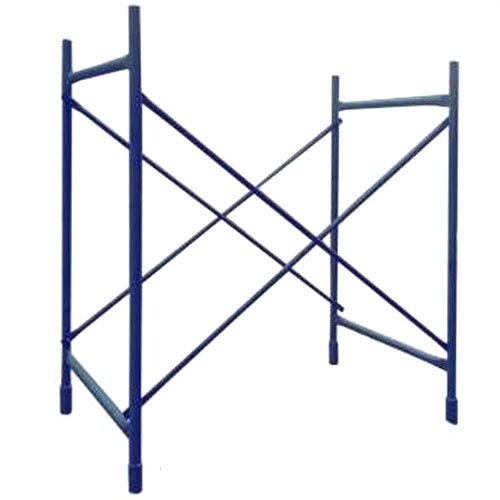

H-Frame system has been specially designed for easy and fast assembly with the minimum of supervision and skilled workers it can be used for access scaffolding and shoring.
Application:
H-Frame system is used as scaffolding for internal and external facades works such as painting,
etc. and it is also a suitable shoring system for different type of slabs of variable heights of
building.
Advantages:
- Dual purpose: - As an access scaffold - As a shoring system.
- Easy to assemble and dismantle.
- Easy to handle due to light weight of frames
- One of the most economic system for heavy duty work such as constructing bridges, elevated motorway sections & huge slabs or beams.
- Shore brace system can be adjusted to any height by using different heights of the frames or by using the telescopic frame at the top of the tower.
- The frame linked vertically by vertical connectors and horizontally by cross bracing between Frames.

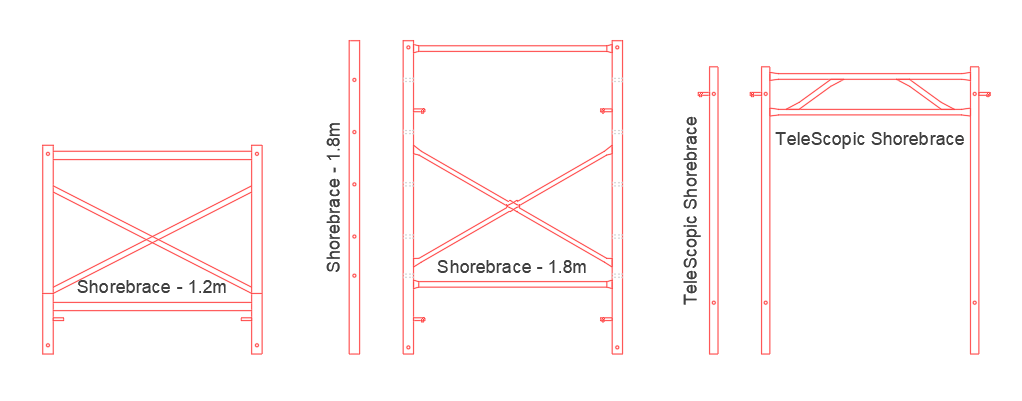

- Shore Brace Frame 1.20m Width x 1.20m Height
- Shore Brace Frame 1.20m Width x 1.80m Height
- Telescopic Shore Brace Frame 1.20m Width x 1.65m Height

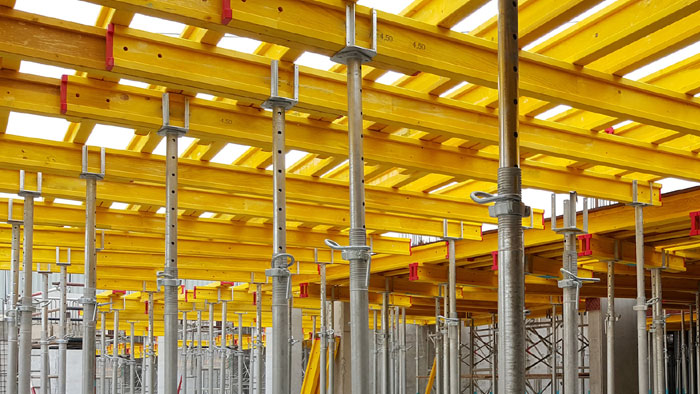

- UniScaff Prop is a flexible H 20 Slab and Beam formwork system that is adaptable every project, in any given situation. It is suitable for all types of floors in different geometries and different layout with various complexities.
- This system is consists of various components such as H 20 Beams, Cross Head, Adjustable Steel Prop, and Tripod Stand.
- It is designed to adjust and work in different heights by adjusting the prop height.
- This system can be used for different slab thickness and Maximum load by increasing or decreasing the spacing between the H 20 Beam and Props
